ZJ70D Drilling Rig

Name: ZJ70D Drilling Rig
Brand: TIC
SKU: ZJ70D
Availability: InStock

2,000 hp land rig rated to 4,000–6,000m with 127mm drill pipe and 4,500–7,000m with 114mm drill pipe. AC-SCR-DC power transmission, digital driller's console, API 4F derrick, full HSE compliance documentation on delivery.

Model

ZJ70D · Trademark TIC

Rated Power

2,000 hp (1,470 kW) drawworks

Hook Load

4,500 kN (static)

Depth Rating

4,000–6,000 m with 5" DP · 4,500–7,000 m with 4½" DP

Transmission

AC-SCR-DC (AC-DC-AC available on ZJ70DB single-axis)

Standards

API Spec 4F · API 7K · API 8C · API 16A · HSE

Origin

China — TIC manufacturing, Western-spec instrumentation

Min. Order

1 set · L/C or T/T · 50 sets/year production capacity

API 4FAC-SCR-DCSwing-lift mastGrooved drum

Request Quote →Talk to an Engineer

Engineering Detail

Built for deep, high-load drilling programmes.

The ZJ70D is a workhorse land rig built for 4,000–7,000m oil and gas programmes. Between the AC-SCR-DC power system, proven drawworks, and grooved drum with API 4F–rated mast, the rig delivers the torque and hoisting performance needed for long, heavy strings. Drilling-floor layout accommodates top drive or kelly drive configurations on request.

AC-SCR-DC transmission

Silicon controlled rectifier system distributes DC power to drawworks, rotary table, and mud pumps for predictable, regulator-smooth performance.

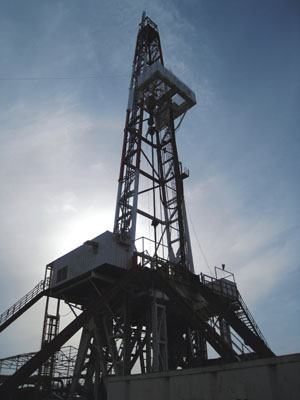

Swing-lift cantilever mast

API 4F mast raises in a single lift with integrated crown block and racking board. Rated for full 4,500 kN static hook load.

Grooved-drum drawworks

Grooved Lebus-pattern drum protects drilling line, extends sheave life, and delivers a cleaner spool during trip operations.

API-rated auxiliaries

Rotary table, mud pumps, and BOP stack all certified to API 7K / 16A. Full MTC EN 10204 3.1/3.2 package on delivery.

Need a full ZJ70D package?

Send your well programme, target depth, and location. We'll return a full BOQ with rig, BOP stack, mud system, and commissioning plan.
