Specialist Equipment · Tunnelling

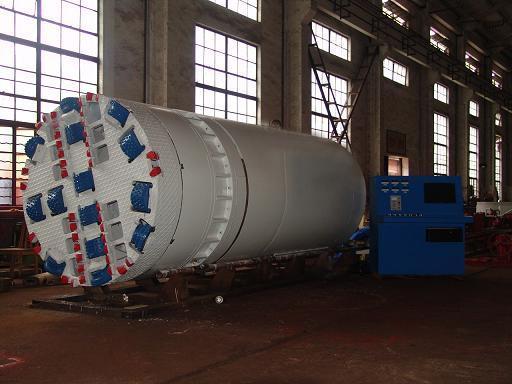

YD 1200–3200
Tunnel Boring Machine

Multi-diameter TBM range covering 1,200mm through 3,200mm. Multi-origin build — German, Italian, Japanese, and Taiwanese components on a Chinese chassis — so you get Western instrumentation reliability at a mainland price point. Suited to metro, water, sewer, and utility tunnelling.

Model Range
YD 1200 · YD 1500 · YD 2000 · YD 2400 · YD 2800 · YD 3200
Trademark
YD
Generator
2 × 15 kW · oil pump displacement 2 × 25 L/min
Hydraulics
31.5 MPa system pressure · 1,500 L reservoir
Main Pumps
22 kW / 150 m³/h · 30 kW / 150 m³/h · 11 kW / 100 m³/h
Control Cable
250 m power & signal cable, outer operating platform
Origin
Germany, Italy, Japan, Taiwan & China components
Applications
Metro · Water supply · Sewer · Utility · Rail crossings
Soft-ground & rockSegmental liningCE markingCommissioning
Submit RFQ →Talk to an Engineer
Engineering Detail

Six diameters. One reliable drive train.

The YD range shares a common hydraulic architecture across all six sizes — 31.5 MPa at the pump, 1,500L reservoir, redundant electric motor drives — so spares and operator training transfer across projects. Cutting heads are configured per ground condition (soft, mixed, or rock), and segmental lining erectors are available as a factory option.

Multi-origin components

German hydraulic pumps, Italian proportional valves, Japanese encoders, Taiwanese bearings — specified per customer tolerance for import regime and budget.

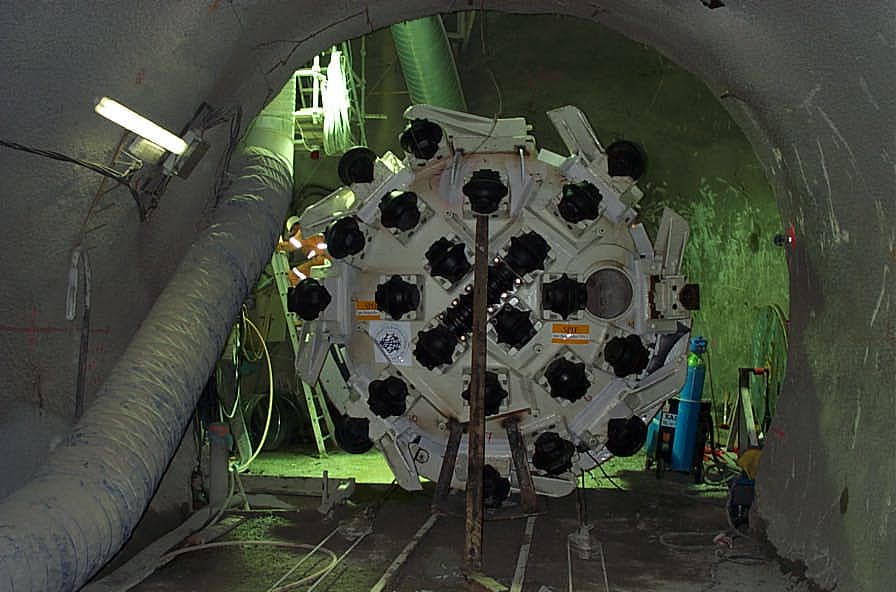

31.5 MPa hydraulic thrust

High-pressure circuit delivers thrust through ground conditions ranging from soft clay to weathered rock without swapping cutter assemblies.

250m cable reach

Outer operating platform rides behind the TBM on 250m power and signal cables, keeping operators clear of the face during long drives.

Segmental lining ready

Erector arm and segment feed conveyor available as factory option for applications requiring precast concrete lining.

Related Products
ZJ70D Drilling Rig API 5L Line Pipe Gamesa G87-2.0 MW All Sourcing Examples →
Compliance & Documentation

Documentation that clears customs and survives audit.

Chemical shipments require more paperwork than steel or equipment. We supply the full file with every formal quote — verified against current export and destination-country regulations before payment release.

Identification
CAS no., HS code, and UN no. (where applicable) supplied with formal quote, matched to your destination tariff schedule.
Safety & Quality
MSDS / SDS in EN/CN/AR, GHS classification, and COA per lot issued before shipment. REACH status confirmed where the destination requires it.
Export & Origin
CO Form A/E, packing list, B/L, and commercial invoice issued under our active Hong Kong import & export licence. Country-of-origin verifiable against factory registration.
Destination Permits
Many chemicals require an import permit in the destination country (Saudi SFDA, UAE MOCCAE, Iran MIMT, etc.). We confirm requirements before booking and flag long-lead approvals up front.

Documentation requirements vary by HS code, destination, and end-use. The list above is the standard package; project-specific certifications (e.g. food-grade, pharma-grade, halal, kosher) are quoted on request.

Tunnel programme on your desk?

Send us your diameter, length, and ground conditions. We'll return a full TBM and back-up system proposal within five working days.

Submit RFQ → Email Sales
