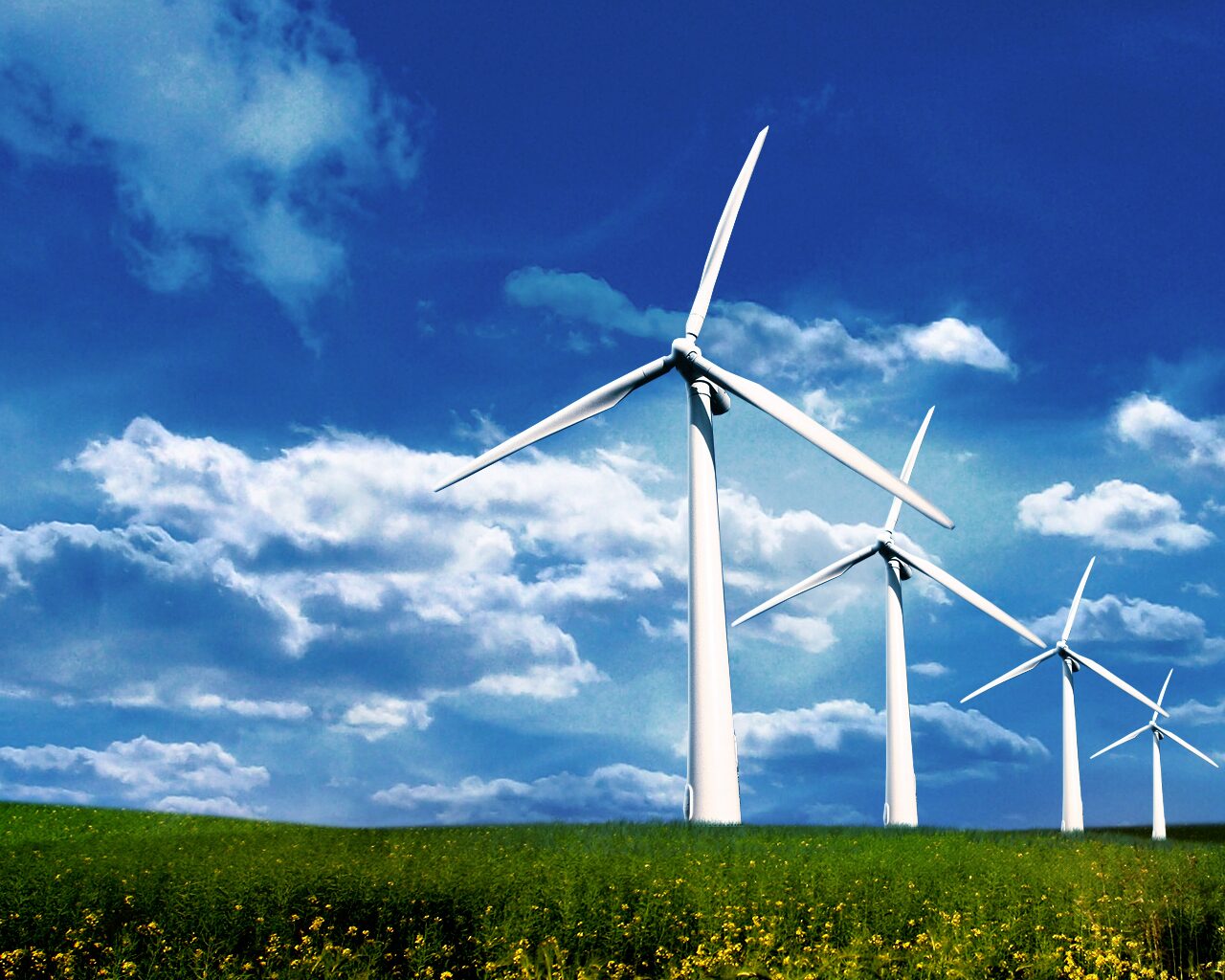

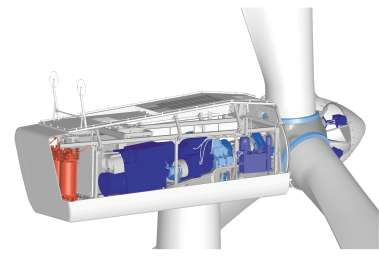

Gamesa G87-2.0 MW wind turbine on site Gamesa G87 rotor and nacelle detail
Specialist Equipment · Wind

Gamesa G87
2.0 MW Wind Turbine

2.0 MW doubly-fed generator with 87m rotor and variable-speed operation 9–19 rpm. Full IEC 61024-1 lightning protection routes strikes from blade tip through the root joint and across the nacelle, protecting sensitive electronics. Supplied as new, reconditioned, or as discrete component spares.

Model
Gamesa G87-2.0 MW
Rated Power
2,000 kW
Rotor Diameter
87 m · swept area ~5,945 m²
Speed Range
9.0 – 19.0 rpm (variable)
Air Density Ref.
1.225 kg/m³ (standard power curve)
Braking
Aerodynamic full-feather + hydraulic disc brake
Lightning Protection
IEC 61024-1 "total lightning protection"
Control
Gamesa SGIPE & WindNet™ farm control
Grid Support
Active Crowbar + oversized converter for LVRT
IEC 61024-1LVRTGamesa NRS noiseSGIPE
Request Quote →Talk to an Engineer
Engineering Detail

Class II+ WTG with grid-friendly ride-through.

The G87-2.0 MW remains one of the most widely deployed 2 MW turbines in the Gamesa fleet, chosen for its balance of swept area, IEC Class II+ wind rating, and the doubly-fed generator topology that delivers low-voltage ride-through to modern grid codes. We supply factory-new units, reconditioned units with full refurbishment records, and discrete component spares for operators running existing fleets.

Full-feather + disc brake

Aerodynamic pitch-to-feather is the primary brake; a hydraulic disc secondary holds the rotor during service. Independent lines.

Active Crowbar LVRT

Oversized converter with active crowbar keeps the turbine connected through grid voltage dips, meeting most utility grid codes.

Gamesa NRS noise control

Programmable noise-reduction system lets the turbine self-derate by time of day, wind sector, or season for neighbour compliance.

Refurb + new options

Factory-new units for greenfield builds, reconditioned units for retrofit, and component-level spares for operators.
