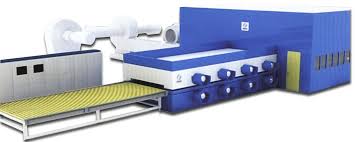

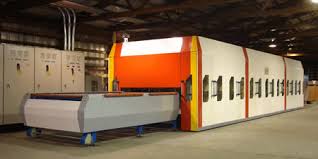

PG2442T flat glass tempering line PG2442T quench cooling section
Specialist Equipment · Glass

PG2442T Glass
Tempering Machine

Flat-glass tempering line with a 2,400 × 4,200mm bed, combining convection and radiation heating with high-flow quench cooling. Handles architectural, automotive, and solar glass through a broad thickness range with consistent surface optics.

Model
PG2442T
Max Glass Size
2,400 × 4,200 mm
Power Capacity
≥ 880 kVA
Installed Power
Driving + heating: 933 kW · Quench cooling: 305 kW · Total 1,238 kW
Heating
Convection + radiation, top and bottom zones
Compressed Air
Per datasheet — ambient oil-free supply required
Applications
Architectural glazing · Automotive · Solar module cover glass · Furniture
Convection + radiationLow-E compatibleEN 12150 / ASTM C1048Training & FAT
Submit RFQ →Talk to an Engineer
Engineering Detail

Optical quality across the full bed.

The PG2442T couples a high-convection heating chamber with a dedicated quench zone to produce tempered glass meeting EN 12150 and ASTM C1048 standards. Zoned top/bottom heaters compensate for coated, laminated, and low-E product without burn spots. Factory training and supervised commissioning are included on every line.

Convection + radiation heating

Two heat-transfer modes in a single chamber keep coated and low-E glass flat and visually clean through the cycle.

Full-bed quench

305 kW dedicated to the cooling blower array — enough pressure head to temper thin (3mm) architectural glass consistently.

Zoned power control

Top/bottom zones independently programmable, so edge-to-centre temperature profile matches the product mix.

FAT + training

Factory acceptance test is conducted in China with your QA team present. Training on startup, shutdown, and recipe edits is included.

Related Products
Gamesa G87-2.0 MW YD 1200–3200 TBM ZJ70D Drilling Rig All Sourcing Examples →
Compliance & Documentation

Documentation that clears customs and survives audit.

Chemical shipments require more paperwork than steel or equipment. We supply the full file with every formal quote — verified against current export and destination-country regulations before payment release.

Identification
CAS no., HS code, and UN no. (where applicable) supplied with formal quote, matched to your destination tariff schedule.
Safety & Quality
MSDS / SDS in EN/CN/AR, GHS classification, and COA per lot issued before shipment. REACH status confirmed where the destination requires it.
Export & Origin
CO Form A/E, packing list, B/L, and commercial invoice issued under our active Hong Kong import & export licence. Country-of-origin verifiable against factory registration.
Destination Permits
Many chemicals require an import permit in the destination country (Saudi SFDA, UAE MOCCAE, Iran MIMT, etc.). We confirm requirements before booking and flag long-lead approvals up front.

Documentation requirements vary by HS code, destination, and end-use. The list above is the standard package; project-specific certifications (e.g. food-grade, pharma-grade, halal, kosher) are quoted on request.

Specifying a tempering line?

Send product mix, daily throughput target, and available utilities. We'll return a full lineup and commissioning plan.

Submit RFQ → Email Sales
