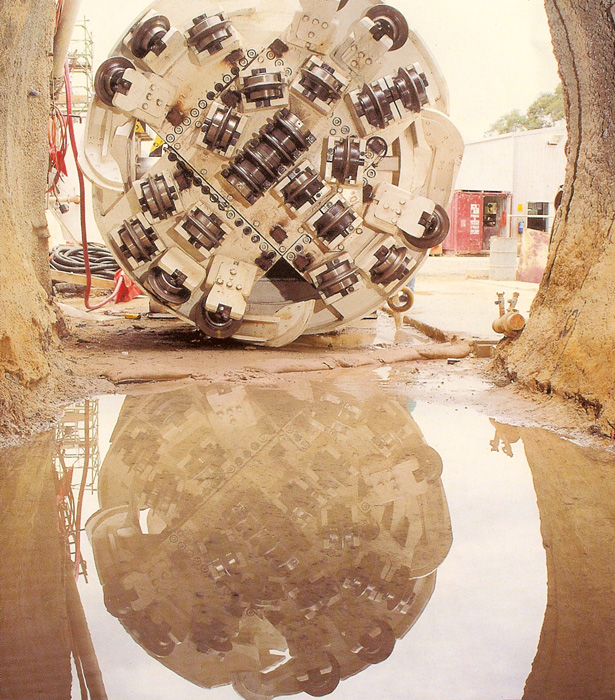

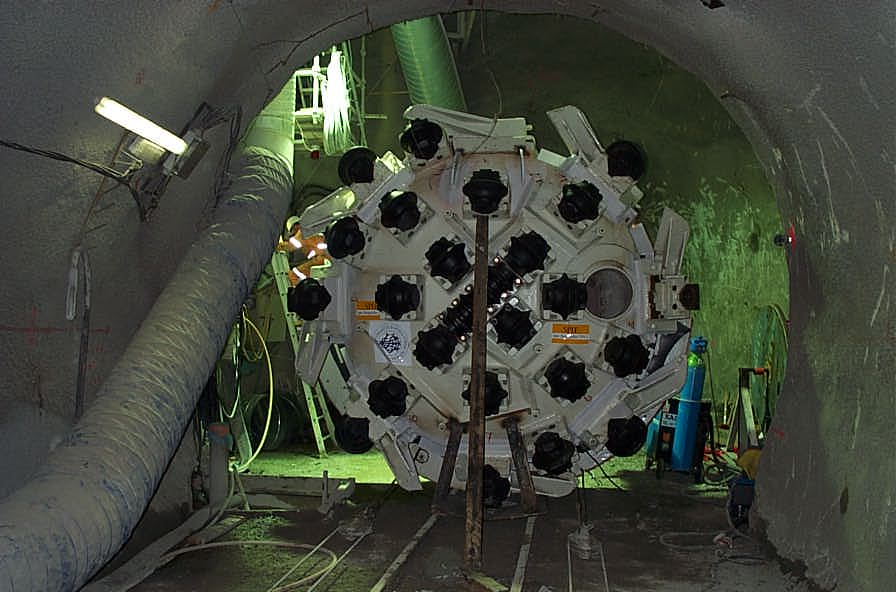

TBM Machine (YD 1200-YD 3200)
Trademark: YD
Model NO.: YD 1200-YD 3200
Productivity: 1 per month
Origin: Germany, Italy, Japan , Taiwan & China Component
Packing: Nude
Type: Tunneling Assmbly
Company: Tyss Int'l Company (Tic)
1. Technical Paramaters
| Soil appliable | Hard Rock, Silt, clay, mudstone, gravel |
| Max Rock Hardness | ≤ 100Mpn |
| Cutting method | Whole surface |
| Pipe jacking inner Dia | Φ 1400mm |
| Measurement * length | Φ 1750*4500mm |
| Cutting Panel; | |
| Motor power | 22kw*3 |
| Max. Torque | 36.7T/m |
| Speed | 1.8rpm |
| Qty of Cylinders | 4 PCS |
| Correction System Cylinder Thrust | 80T/PC |
| Correction Angle | 2.5° |
| Mud in-out System Pipe Dia | Φ 100mm |
| Thrust Speed mm/min | 0-200 |
| Main Body Power Kw | 72 |
| Main Body Weight kg | 16000 |
| Controlling mode and attachedequipments | |
| Outer operating Platform with 250m powercable, signal controlling cable | 250m |
| Camera | 1 set |
2.Main Jacking System:
|
No. |
Name |
Model |
Technical Specifications |
Qty. |
|
1 |
Main jacking cylinder |
Thrust force:200t;oil pressure:31.5MPa;stroke:2050mm |
4 |
|
|
2 |
Main jacking pump station |
BZT1500 |
Generator power:2×15KW;oil pump displacement:2×25L/min |
|
|
Oil pressure:31.5MPa;capacity:1500L |
1 |
|
|
|
|
3 |
Cylinder frame |
φ1400 |
1 |
|
|
4 |
Guide slide |
φ1400 |
1 |
|
|
5 |
Pushing Ring |
φ1400 |
1 |
|
|
6 |
Rear back support |
φ1400 |
1 |
3. Mud Water System:
|
No. |
Name |
Model |
Technical Specifications |
Qty. |
|
1 |
Water in pump |
Sand pump |
Motor power:22 Kw;displacement:150m3/h;lift stroke:22m |
1 |
|
2 |
Mud out pump |
Sand pump |
Motor power:30 Kw;displacement:150m3/h;lift stroke:30m |
1 |
|
3 |
Inline Pump |
Motor power:11 Kw;displacement:100m3/h;lift stroke:15m |
1 |
|
|
4 |
Mud and water pipe |
4" steel pipe(3M),Coupling & rubber rings |
168 |
|
|
5 |
Mud and water hose |
4" ,length:6m |
2 |
|
|
6 |
Tunnel exit water seal |
φ1400 2 Layer |
2 |
|
|
7 |
High pressure water pump |
power:7.5KW;displacement:10m3/h,lift stroke:100m |
1 |
4. Slurry Inject System:
|
No. |
Name |
Model |
Specifications |
Qty. |
|
1 |
Slurry inject pump |
2ZB200/40 |
Displacement:200L/min,pressure:4MPa |
1 |
